Specifications

• Certifications
  • ADA Compliant: No
  • Energy Star Qualified: No
  • IMEF: 1.65
  • IWF: 4.97
  • UL: Yes
  • Energy Rating (Kwh/Year): 340
  • Energy Rating: 340
  • Prop65: Standard
• Controls
  • Eco Monitor/Efficiency Monitor: No
  • Control Type: Capacitive Touch
  • Automatic Temperature Controls: Yes
  • Control Location: Rear Console
  • Electronic Display Type: 2.4in LCD
  • End Of Cycle Signal: Yes
  • Feedback-Status Indicators: Add Garment; Done; Estimated Time Remaining; Lid Lock; Sensing; Washing
  • LED Color: White
  • LCD Touch Screen: No
• Cycles
  • Number Of Wash Cycles: 36
  • Washer Cycle Selections: Bulky Items; Clean Washer with affresh; Cold Wash; Colors; Delicates; Drain & Spin; Heavy Duty; Normal; Quick; Regular; Rinse & Spin; Sanitize with Oxi; Towels; Whites; Wrinkle Control
• Details
  • Dryer Interior Light: No
  • Internal Heater: No
  • Maximum Spin Speed: 750
  • Recirculation(Visible): No
  • Water Factor: 4.97
  • Fabric Brush: Yes
  • Hoses Included: Drain Hose
  • Water Faucet: Yes
  • Stackable: No
• Dimensions
  • Depth With Door Open 90 Degree: 27.875
  • Height With Lid Open: 57.25
  • Carton Depth: 29.25 inches
  • Carton Height: 46 inches
  • Carton Width: 29 inches
  • Gross Weight: 148 pounds
  • Capacity (DOE) US: 4.8
  • Washer Door Opening Width: 26.19
  • Net Weight: 143 pounds
  • Capacity IEC Canada: 5.5
• Electrical
  • Power Cord Included: Yes
• Exterior Details
  • Adjustable Feet: Yes
  • Lid/Door Finish: Edge Glass
  • Lid/Door Lock: Yes
  • Lid/Door Swing: N/A
  • Slow Close Lid: Yes
  • Window: Yes
• Interior Details
  • Advanced Vibration Control: Yes
  • Dispense System: Bleach; Detergent; Fabric Softener; Single Dose
  • Wash Action: Impeller
  • Washer Drum Material: Stainless Steel
  • Automated Dispenser: Drawer
  • Out Of Balance Sensing: Yes
  • Suspension System: 4 Springs 4 Dampers; Liquid filled upper balance ring
  • Washer Drum Rear/Base Material: Plastic
  • Automatic Load Size Sensing Technology: Yes
  • Motor Drive Type: Belt
• Modifiers
  • Delay Start: Up to 12 hours
  • Number Of Soil Levels: 5
  • Number Of Spin Speeds: 3
  • Number Of Washer Options: 6
  • Number Of Water Levels: 4
  • Spin Speed Selections: Fast; Medium; Off
  • Washer Soil Selections: Extra Heavy; Extra Light; Heavy; Light; Normal
  • Water Levels: Auto; High; Max Fill; Medium
  • Number Of Rinse Options: 2
  • Rinse Temperature: Cold
• Options
  • Washer Option Selections: Custom Cycle; Deep Water Wash; Delay Wash; End of Cycle Signal; Extra Rinse; Fabric Softener; Presoak; Sales Demo Mode
• Performance Details
  • Motor Horsepower: 1/3 HP

Description

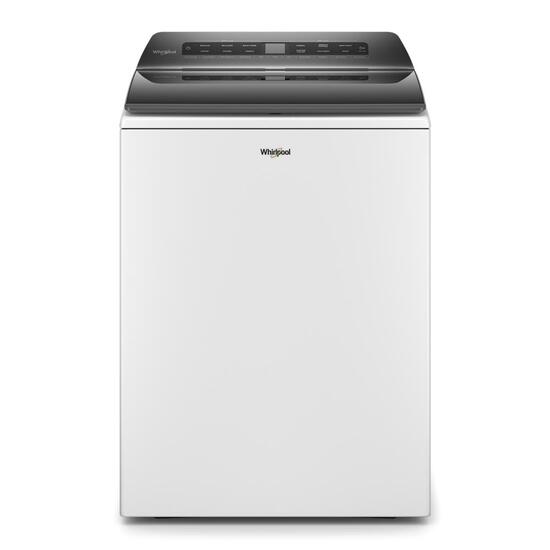

28 Inch Top Load Washer with 4.8 Cu. Ft. Capacity for large laundry loads

Adaptive Wash Technology automatically adjusts water levels and wash actions for optimal cleaning

Active Bloomâ„¢ Wash Action ensures thorough washing by enhancing agitation and fabric care

Pretreat Station for convenient stain removal before washing

EasyViewâ„¢ Glass Lid lets you monitor the washing process without opening the lid

36 Wash Cycles, offering a wide range of options to suit different laundry needs

Clean Washer Cycle for maintaining washer cleanliness

Delay Start feature to set the washing cycle for a later time

Automatic Presoak for better stain removal and fabric care

Sanitize with Oxi cycle helps eliminate bacteria and allergens, ensuring clean, fresh laundry

Finished in white, providing a sleek and modern look for your laundry room

Features

• Pretreat Station: Soak, scrub and wash all in one spot with a built-in faucet and pretreat brush for quick, easy access to tools that help you get it all done at once.
• Intuitive Controls: Let the washer guide you to the right cycle combinations or customize up to 36 of your own to get the right type of fabric care for whatever you’re washing.
• Single load dispenser drawer: Add detergent, bleach and fabric softener to their designated compartments so each gets dispensed at just the right time during the cycle.
• Adaptive Wash technology with Active Bloom™ wash action: Adaptive Wash technology with Active Bloom™ wash action senses the size of each load and then adapts water levels and wash actions, based on the type of load being washed, for optimal cleaning.
• Automatic Presoak option: Tackle stains without a trip to the sink with the Automatic Presoak option. Set your washer to soak for 15, 30, 60 or 120 minutes, then the washer will add water and detergent for soaking. The cycle will start automatically once soaking is complete.
• Deep Water Wash Option: Get more water to help break down loose soils. This option automatically adds more water to your load, so heavily soiled clothes get an optimal clean.
• Delay Start option: Come home to clean clothes with the Delay Start option. Schedule a cycle up to 12 hours in advance so you can get laundry done even when you’re not at home.
• Smooth Impeller: Give clothes a thorough yet gentle clean. Designed so clothes have more room to move, the surface and vanes also help drive clothes from the outer rim to the center, where the deepest cleaning happens.
• Quick Wash cycle: Your small, lightly soiled loads will be clean in as little as 30 minutes with the Quick Wash cycle.
• Quiet Wash action: Quiet Wash action helps keep operational sounds inside the washer and out of living areas thanks to sound-absorbing material.
• 4.8 cu. ft. capacity: Wash more than two baskets of clothes in a single load thanks to our 4.8 cu. ft. capacity washer. You’ll even have the space you need for bulky items like comforters.
• EasyView™ full-width slow-close glass lid: Enjoy a clean, streamlined look with the slow-close, see-through lid that lets you easily check on your load while it’s washing.
• Sanitize cycle with Oxi: The Sanitize cycle with Oxi eliminates 99.9% of common household bacteria by mixing detergent with an oxi additive.
• Clean Washer with affresh® cycle: Run the Clean Washer with affresh® Cycle every 30 washes with an affresh® washing machine cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer.
• An American company for over 100 years: Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
• 750 RPM spin speed: Spin speeds up to 750 RPM remove moisture from clothes, so they spend less time in the dryer.
