Specifications

• General
  • Internal article number: PCG486WD
  • Location of control panel: Front
  • Gas type: Natural gas 15 mbar (USA)
  • Color of frame: Stainless steel, Stainless Steel
  • Power cord length (cm): 243.8
  • Plug type: 120V-3 prong
  • Product packaging dimensions (HxWxD) : 20 1/2" x 53 1/4" x 40 1/2"
  • Height of the packed product (mm): 520
  • Product group: Hob
  • Brand: Thermador
  • Product name / series name: mixed hob w integr controls
  • SKU: PCG486WD
  • EAN code: 825225935537
  • Construction type: Built-in
  • Type of control: Mechanical
  • Type of control: Front;sword knobs
  • Number of electric elements: 0
  • Number of radiant elements: 0
  • Number of halogen elements: 0
  • Power Cord Length: 96''
  • Number of induction elements: 0
  • Overall appliance dimensions (HxWxD) : 10 9/16'' x 47 15/16'' x 25 13/16''
  • Alternative gas type: Liquid gas 27,5 mbar (USA)
  • Basic surface material: Porcelain, Steel
  • Width of the packed product (mm): 1030
  • Depth of the packed product (mm): 1350
  • Net weight (kg): 67.4
  • Gross weight (kg): 83.5
  • Automatic programmes: Yes
  • Type of heating element: Gas
  • Type of 2nd heating element: Gas
  • Location of 3rd heating element: Hinten links der Mitte
  • Type of 3rd heating element: Gas
  • Knob Material: Full metal
  • Location of 4th heating element: center right
  • Type of 6th heating element: Gas
  • LP Gas Connection Rating : 90000
  • Number of electric warming zones: 0
  • Type of frame: Professional, Standard frame
  • Frequency (Hz): 60
  • Power of the heating element: 5.27
  • Location of 2nd heating element: back left
  • Type of 5th heating element: Gas
  • Location of 6th heating element: front right
  • Total BTU load: 108000
  • Power on indicator: Yes
  • Plate on indicator: 0
  • Residual heat indicator: Without
  • Main on/off switch: No
  • Power of 3rd burner : 15000
  • Safety device: Electronic flame failure safety device
  • Timer: No
  • Gross weight : 184.000
  • Energy input: Gas
  • Number of gas burners: 6
  • Number of electric cooking zones: 0
  • Location of gas connection: Bottom, Rear, Right
  • Type of 4th heating element: Radiant heating
  • Location of 5th heating element: back right
  • Optional accessories: PA12CHPBLK, PA12GRILFW, PA12GRILLW, PA12LCVRW, PA48WLBC, PAALTKITH, PAGRIDDLE, PAKNOBLUWR, PALPKITHW, PWOKRINGHC
  • Power of 6th burner : 18000
  • Power of 6th burner : 18000
  • Net weight : 149.000
  • Gas connection rating (W): 31620
  • Current (A): 15
  • Volts (V): 120
  • dishwasher safe pan support: No
  • Ignition system: Yes
  • Power of 2nd burner : 15000
  • Power of 5th burner : 15000
  • Depth for installation (mm): 268
  • Location of the heating element: front left
  • Power of 4th heating element (kW): 1.63
  • Minimum distance from rear wall : 12''
  • Required cutout size (HxWxD) : 10 9/16'' x 46 1/4'' x 7 11/16''
  • Included accessories: 3 x cast iron pan support, 1 x griddle, 1 x island trim
  • Sealed Burners: Yes
  • Number of Double grates: 3
  • Type of regulation: Step energy regulated
  • Type of lid: Without
  • Type of safety device for gas: Central electronic safety device
  • Power of 1st burner : 18000
  • UPC code: 825225935537

Description

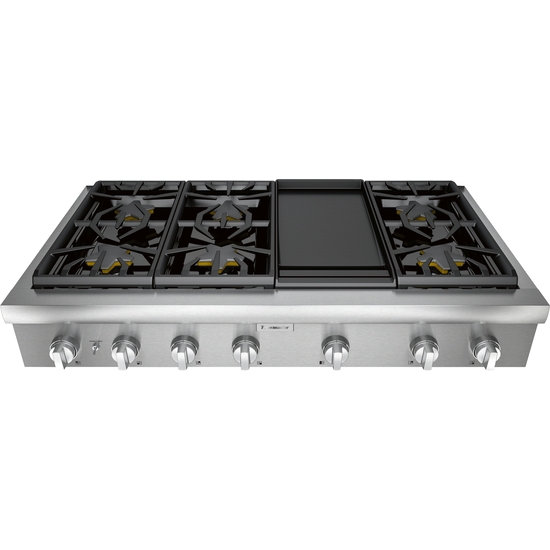

48-Inch Gas Rangetop: Features a spacious cooking surface with 6 sealed burners for all your cooking needs.

Pedestal Star® Burners: Offers even heat distribution for optimal cooking performance and consistent results.

Continuous Grates: Allows easy movement of cookware across burners for greater flexibility and convenience.

2 ExtraLow® Burners: Perfect for gentle simmering and maintaining low temperatures for delicate dishes.

QuickClean Base®: A design that makes cleanup easier by minimizing spills and preventing grease buildup.

LED Downlighting: Provides clear, bright illumination of the cooking surface for better visibility while cooking.

Griddle Included: Offers an additional cooking surface for making pancakes, grilled sandwiches, and more.

6 Sealed Burners: Helps contain spills and makes cleaning up simple by preventing food from falling into hard-to-reach areas.

Features

• Non-stick griddle and Star® Burners with QuickClean Base® deliver superior power and heat distribution with effortless cleaning
• Star® Burners: Our patented five-point design provides equal flame distribution for even cooking.
• ExtraLow® Burners: 2 burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.
• Non-Stick Griddle: Deliver consistent even heating across a flat large surface  with easy removal for cleaning.
• 18,000 BTU Star® Burners: These extra high heat burners across the front are optimal for rapid boiling and high heat searing.
• LED Down Lighting: clearly illuminate the control panel with ample lighting.
