Specifications

• Air throughput with max. duct diameter in vented mode (not for external version) -
  • Air throughput and sound emissions: Values upon request
• burner 4.5 kW) in mmUse above gas hobsThis hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW.: 26 (660) | Net weight in lbs. (kg): 28 (12.5) | Length of electrical wire in ft (m): 4 (1.5) | Standard plug fitted: • | Total connected load in kW: 0.36 | Voltage in V: 120 | Fuse rating in A: 15 | Number of phases: 1 }, Installation notes -
  • Diameter of vent connection in in.(mm): 6 (150)
  • Vent connection at top: •
• Cleaning convenience -
  • EasyClean CleanCover hood liner: The sealed, smooth surface prevents contact with the electrical components/motor.
• Control panel -

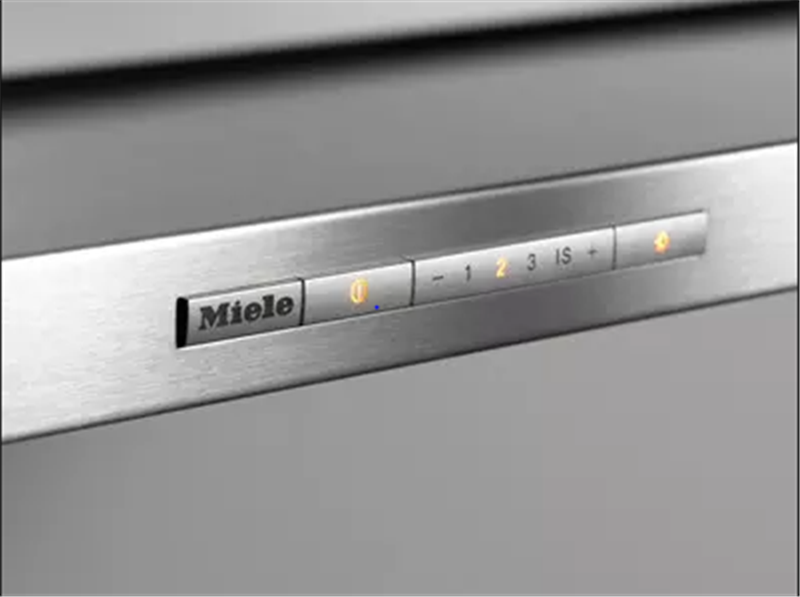

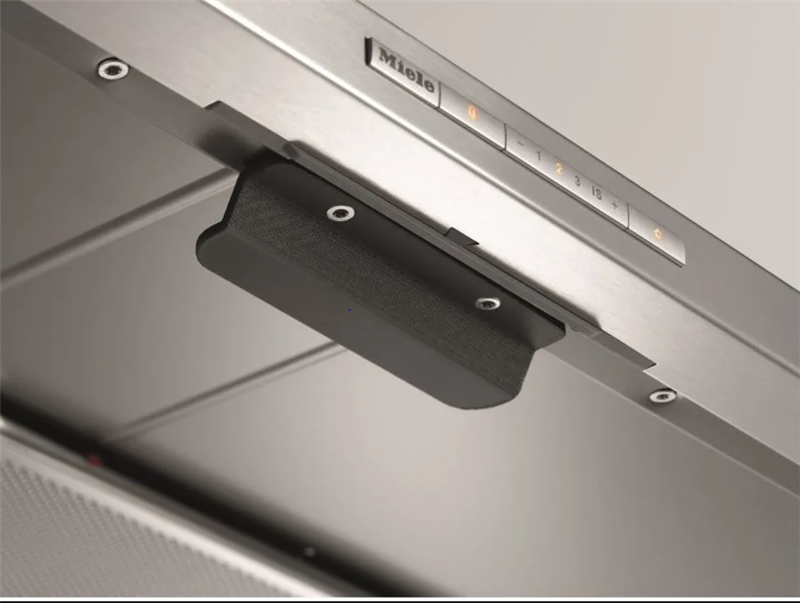

  • Backlit controls: The Booster setting is efficient at extracting strong cooking vapors and odors.
  • Electronic controls: •
• Design -
  • Color: Stainless steel
• Lighting -

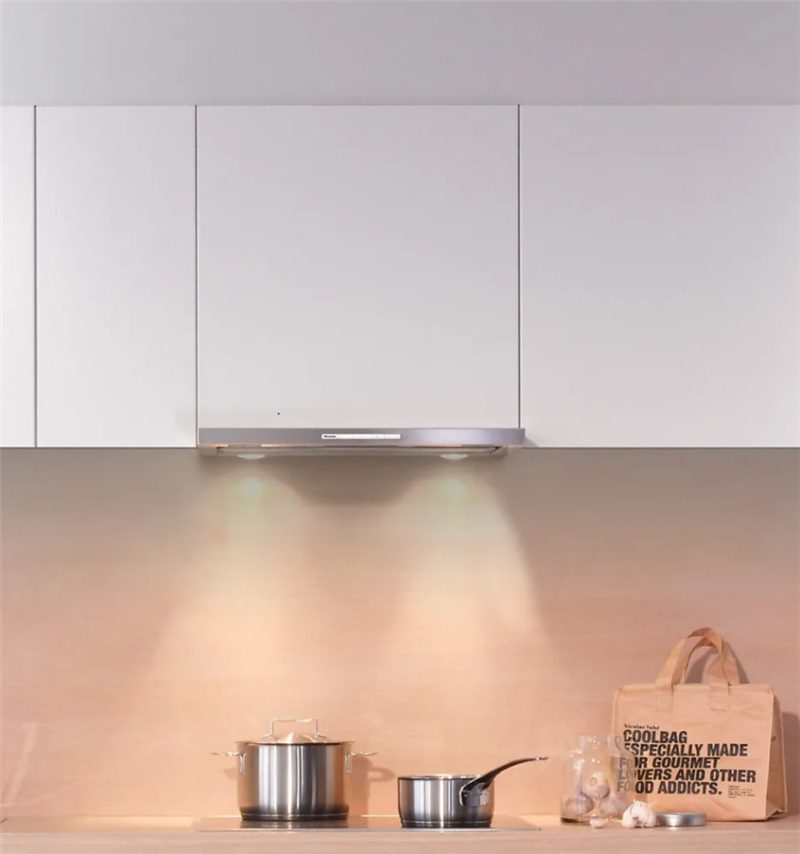

  • LED ClearView lighting: With up to 4.5 W they illuminate the cooktop with a warm light.
  • Light intensity in Lx: 320
  • Color temperature in K: 3,000
• Operating modes -
  • Recirculated mode: Convertible
• Safety -
  • Safety shut-off: The ventilation hood will switch off automatically after 10 hours.
• smooth surface prevents contact with the electrical components/motor. }, Filter system -
  • Dishwasher-safe stainless steel grease filters: 1
• Standard accessories -
  • Non-return flap: •Non-return flapA non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with vented mode ventilation hoods. This component is installed in the exhaust socket above the motor in your ventilation hood and prevents air from flowing back through the vented ducting when the appliance is not in use.
• Technical data -
  • Canopy width in in.(mm): 23 1/2 (595)
  • Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mmUse above gas hobsThis hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW.: 26 (660)
  • Total connected load in kW: 0.36
  • Fuse rating in A: 15
  • Standard plug fitted: •
  • Height of hood canopy in in.(mm): 1 3/8 (34)
  • Depth of hood canopy in in.(mm): 10 7/8 (275)
  • Net weight in lbs. (kg): 28 (12.5)
  • Length of electrical wire in ft (m): 4 (1.5)
  • Minimum distance above electric cooktops in in.(mm): 24 1/8 (610)
  • Voltage in V: 120
  • Number of phases: 1
• 000 }, Blower -
  • AC motor: •
  • Dual-action blower: Radial blowers on both sides ensure high air throughput and vented with low noise levels.
• Blower
  • Dual-action blower
  • AC motor
• Cleaning convenience
  • EasyClean CleanCover hood liner
• Construction type

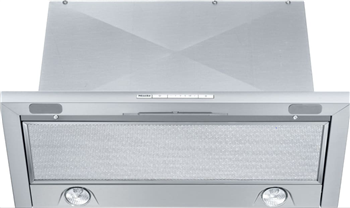

  • Built-in ventilation hood
• Construction type -
  • Built-in ventilation hood: •
• Control Panel
  • Electronic controls
  • Power levels (number excl. Intensive) :3
  • Intensive setting
  • Programmable Intensive switch-off
  • Backlit controls
• Design
  • Color :Stainless steel
• Filter System
  • Dishwasher-safe stainless steel grease filters :1
• Installation Notes
  • Diameter of vent connection in in.(mm):6 (150)
  • Vent connection at top
• LIGHTING
  • Color temperature in K :3,000
  • LED ClearView lighting
  • Light intensity in Lx :320
• Operating modes
  • Recirculated mode:Convertible
• Safety
  • Safety shut-off
• Standard accessories
  • Non-return flap
• Technical Data
  • Height of hood canopy in in.(mm) :1 3/8 (34)
  • Depth of hood canopy in in.(mm) :10 7/8 (275)
  • Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm :26 (660)
  • Total connected load in kW :0.36
  • Voltage in V :120
  • Fuse rating in A :15
  • Number of phases :1
  • Canopy width in in.(mm) :23 1/2 (595)
  • Minimum distance above electric cooktops in in.(mm) :24 1/8 (610)
  • Net weight in lbs. (kg) :28 (12.5)
  • Length of electrical wire in ft (m) :4 (1.5)
  • Standard plug fitted

Description

Features

• Elegant design - slim 23 1/2 (595) in (mm) extractor canopy
• Powerful - on the booster setting
• Efficient filtration- 10-ply stainless steel grease filters
• Safe and easy to clean - Miele CleanCover
• Suitable for every home - vented or recirculating
