Specifications

• ACCESSORIES
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Optional Accessories : WB48X21543 Roller Rack
  • Center Grate : Optional - JXGRATE1
  • Griddle Accessory : Integrated Griddle (Included)
  • LP Conversion Kit : Included
• APPEARANCE
  • Control Knobs : Color-Matched
  • Oven Door Features : Big View Oven Window
  • Handle Design : Designer Style
  • Handle Color : Black
  • Color Appearance : Black
  • Cooktop Burner Grate Color : Matte Black
• CAPACITY
  • Capacity (Cu. Ft.) : 5.0
  • Total Capacity (cubic feet) : 5 cu ft
• FEATURES
  • Ignition System : Electronic
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Fuel Type : Natural Gas (factory set)
  • Burner - Right Rear : 12,000 BTU
  • Oven Control Features : Audible Preheat Signal, Auto Self Clean, Delay Bake Option, Sabbath Mode
  • Oven Rack Features : 2 Oven Racks
  • Griddle : Integrated (Included)
  • Product Type : Free-Standing Single Oven
  • Interior Oven Light : 1 Auto Incandescent
  • Oven Cleaning Type : Self-Clean with Steam Clean Option
  • Burner - Center : 10,000 BTU Oval
  • Cooktop Type : Continuous Grates with Griddle
  • Control Type : Electronic Touch
  • Burner - Left Front : 18,000 BTU Power Boil
  • Drawer Type : Storage
  • Sabbath Mode : Yes
  • Cooking Technology : Convection
  • Cooktop Burner Grate Material : Heavy Cast Iron
  • Oven Cooking Modes : Convection Bake, No Preheat Air Fry
  • Burner - Right Front : 9,500 BTU
  • Cooktop Surface : Color-Matched, Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel
  • Cooktop Burner Type : Sealed
  • Configuration : Range with Storage Drawer
  • OU Certified : OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
• FILTER
  • App Filter - Product Type : Ranges Free-Standing Single Oven
  • App Filter - Cooking Technology : Convection
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Fuel Type : Gas
  • App Filter - Convection : Yes
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Cleaning Type : Steam and Self-Clean
  • App Filter - Cooktop Type : Continuous Grates with Griddle
  • App Filter - Drawer Type : Storage
• POWER / RATINGS
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 16.0 Bake / 13.5 Broiler
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 12.0 Broiler
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 190 lb
  • Overall Width : 30 in
  • Height to Cooking Surface (in.) : 36 - 36 1/2
  • Depth Without Handle : 26.25 in
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 221 lb
  • Overall Height : 47.25 in
  • Overall Depth : 28.75 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 19 x 19
  • Depth with Door Open : 46.25 in

Description

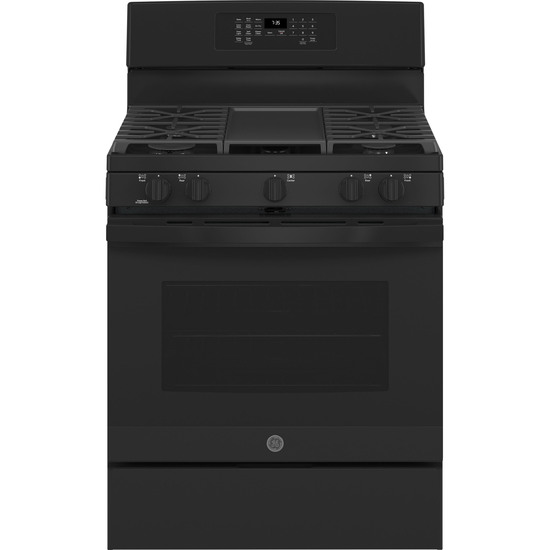

The 30'' Free-Standing Gas Convection Range with No Preheat Air Fry combines advanced cooking technology and convenience. This versatile range offers:

• Spacious oven and multiple burners for a variety of cooking tasks
• Convection system for even heat distribution, ensuring consistent results
• No Preheat Air Fry feature for quick, crispy meals without the wait
• Freestanding design for easy installation and a modern, sleek appearance
• Ideal for preparing large meals or multitasking with various cooking methods

Perfect for home cooks who want reliable, efficient performance with added features for convenience and versatility.

Features

• No Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray
• Edge-to-edge cooktop : Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
• Integrated griddle : This integrated griddle leads the industry in size and quality, so you can cook a lot of food at once
• Power boil burner : This 18,000-BTU power boil element produces intense heat to boil water fast
• Precise Simmer Burner : This burner setting provides low, even heat so delicate dishes don't burn
• Convection : This gas convection oven cooks and browns more evenly, using a rear fan to circulate hot air
• Self-clean with steam clean : This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor
• Center oval burner : This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
• Heavy duty, dishwasher-safe grates : These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven
• Large capacity oven : Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes
• Optional roller rack : An optional roller rack which makes removing heavy or odd-size cookware easy and safe
• Removable storage drawer : A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen
• Enhanced Shabbos Mode : The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
