Specifications

• Accessories (sold separately)
  • Door panel stainless steel Left hinge 84" : RD3084WLD
  • Door panel stainless steel Right hinge 84" : RD3084WRD
  • Handle kit Contemporary round, aluminium : AHSRD3084W
  • Handle kit Contemporary square fine, black : AHD5RD3084WB
  • Handle kit Professional round flush : AHP3RD3084W
  • Handle kit Professional round flush, Brass off-stands : AHP3RD3084WBA
  • Handle kit Professional round flush, Dark Copper off-stands : AHP3RD3084WDC
  • Joiner kit : AJ-RS84LR
  • Toe kick stainless steel 30" : AKRS3004
  • Toe kick stainless steel 48" : AKRS4804
  • Toe kick stainless steel 54" : AKRS5404
  • Toe kick stainless steel 60" : AKRS6004
  • Toe kick stainless steel 66" : AKRS6604
  • Toe kick stainless steel 72" : AKRS7204
  • Toe kick stainless steel 78" : AKRS7804
  • Handle kit Classic : AHCLRD3084W
  • Toe kick stainless steel 84" : AKRS8404
  • Handle kit Contemporary square fine, aluminium : AHD5RD3084W
• Capacity
  • Total gross capacity : 15.87cu ft
  • Volume : 15.9cu ft
  • Volume freezer : 5.4cu ft
  • Volume refrigerator : 10.5cu ft
• Consumption
  • Energy rating : Energy star
  • Energy usage : 478kWh/year
• Features
  • Adjustable door shelves : 4
  • Adjustable glass cantilevered shelves : true
  • Covered door shelves : 1
  • Door alarm : true
  • Fruit and vegetable bins : 2
  • Gallon door shelves : 1
  • LED bin lighting : true
  • LED ceiling lighting : true
  • LED lighting : true
  • LED side lighting : true
  • SmartTouch interface at counter height : true
  • Stackable bottle holders : 4
  • Internal water dispenser : true
• Freezer features
  • Automatic ice maker : true
  • Door alarm : true
  • Fast freeze : true
  • LED ceiling lighting : true
  • Max Cold : true
  • SmartTouch interface at counter height : true
  • Freezer bins : 2
  • Freezer trays : 1
  • LED side lighting : true
  • Ice Boost : true
  • LED bin lighting : true
• Performance
  • Humidity control system : true
  • Inverter controlled compressor : true
  • Sabbath mode : true
  • Variable food modes : Pantry; Fridge; Soft freeze; Freezer
  • Variable temperature zones : 2
  • Dual evaporator : true
  • Frost free freezer : true
  • ActiveSmart™ Foodcare : true
  • Adaptive defrost : true
• Power requirements
  • Rated current : 10A
  • Supply voltage : 115V
  • Supply frequency : 60Hz
• Product dimensions
  • Width : 29 3/4"
  • Depth : 24"
  • Height : 84"
• Product information
  • Packaged weight : 406lbs
  • Unpackaged weight : 304lbs
• Warranty
  • Parts and labor : 2 years
  • Sealed system parts only : 5 years

Description

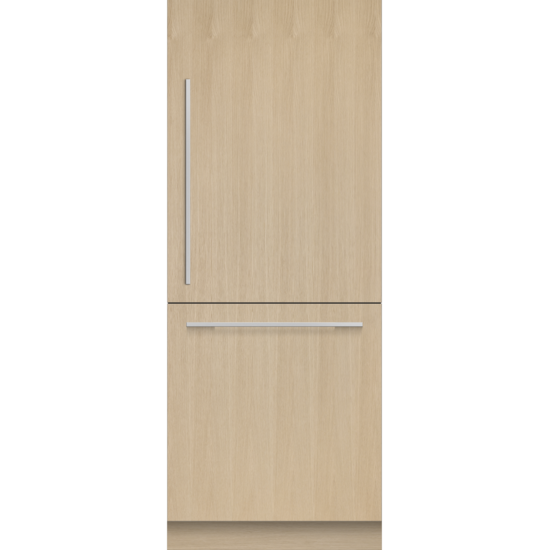

30 Inch Smart Panel-Ready Built-In Refrigerator with Bottom Mount Freezer

Features an internal water dispenser for easy access to chilled water

Equipped with an internal ice maker for continuous ice production

Premium stainless steel interior for durability and ease of cleaning

ActiveSmartâ„¢ technology optimizes temperature management and energy efficiency

Includes a variable temperature zone for customized storage of different foods

LED-lit shelves provide bright, energy-efficient lighting for clear visibility

Sabbath Mode for religious observance, allowing the refrigerator to operate within guidelines

Energy Star certified for high energy efficiency

Right-hinged door for flexible installation options

Features

• Create the perfect climate and store each type of food at optimal temperature and humidity with Variable Temperature Zone, reducing food waste due to spoiling. You have the choice of four food modes: Pantry, Fridge, Soft Freeze or Freezer. Use the Max cold feature for periods of high refrigerator or freezer use, or full grocery loads.
• ActiveSmart™ Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
• Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior. Internal storage space is maximized thanks to a flush-fit slimline water dispenser that gives a continuous flow of temperature-controlled chilled water to fill almost any size or shape of vessel. The dual valve system instantly stops water flow to prevent drips and spills.
• Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer. The door and veggie bins are family safe, allowing for hands-free operation thanks to its soft close mechanism
• Both the 24" and 30" Integrated Refrigerator Freezers can be installed separately or paired with a Column Refrigerator, Freezer or Wine Column. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
• These models fit flush and have only ?” gaps around them with no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry for an understated and clean look with any kitchen layout.
• The premium design and finish includes a steel interior lining as well as full extension metal shelf runners for easy access, robust glass shelving and quality hinges designed for daily use.
