Specifications

• Cleaning
  • Stainless steel filter cover
  • Dishwasher safe filters: 3
• Controls
  • Control type: Soft-touch buttons
  • Light type: LED 2 x 60W
  • Timer function
• Details
  • UPC Code: 822843500826
• Fan ratings
  • Speed 3 airflow: 542CFM
  • Speed 1 airflow: 316CFM
  • Speed 1 sound rating: 48dBA
  • Speed 2 airflow: 432CFM
  • Maximum air movement: 600CFM
  • Maximum decibel rating: 67dBA
  • Speed 2 sound rating: 58dBA
  • Speed 3 sound rating: 63dBA
  • Speed 4 airflow: 600CFM
  • Speed 4 sound rating: 67dBA
• General
  • Body type : Brushed Stainless Steel with black glass
  • Speed 1 sound rating 48dBA
  • Speed 3 airflow 542CFM
  • Speed 4 airflow 600CFM
  • Speed 4 sound rating 67dBA
  • Ducted Top extraction
  • Recirculation Optional - top extraction
  • Two-Piece Height Adjustable Flue ?
  • Cleaning
  • Fan ratings
  • Maximum decibel rating 67dBA
  • Light bulb 792579
  • Recirculation carbon filter(s) 791772
  • Maximum air movement 600CFM
  • Speed 1 airflow 316CFM
  • Speed 2 airflow 432CFM
  • Speed 2 sound rating 58dBA
  • Speed 3 sound rating 63dBA
  • Performance
  • Extraction type Surface
  • Filter type Mesh
  • Number of filters 2
  • Speeds 4
  • Installation
  • Air outlet 6"
  • Internal Blower Included ?
  • Supply frequency 60Hz
  • Dishwasher safe filters 2
  • Stainless steel filter cover ?
  • Controls
  • Control type Soft-touch button
  • Light type LED 2 x 6W
  • Timer function ?
  • Power requirement
  • Chimney extension 791774
  • Recirculation diverter 792580
  • Details
  • UPC Code 822843500826
  • Warranty
  • Warranty 2 years parts & labor
  • Style And Series
  • Product Style Contemporary
  • The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel's Customer Care Centre to ensure this page correctly describes the model currently available.
  • Rated current 5.2A
  • Supply voltage 120V
  • Total Power 542W
  • Optional accessories
• Installation
  • Air outlet: 6
  • Ducted: Top extraction
  • Internal Blower Included
  • Recirculation: Optional - top extraction
  • Two-Piece Height Adjustable Flue
• Optional Accessories
  • Light bulb: 792579
  • Recirculation carbon filter(s): 791772
  • Recirculation diverter: 792580
  • Chimney extension: 791774
• Performance
  • Filter type: Mesh
  • Number of filters: 3
  • Extraction type: Surface
  • Speeds: 4
• Power Requirements
  • Rated current: 5.2A
  • Supply Frequency: 60Hz
  • Supply voltage: 120V
  • Total Power: 542
• WARRANTY
  • Warranty: 2 years parts & labor

Description

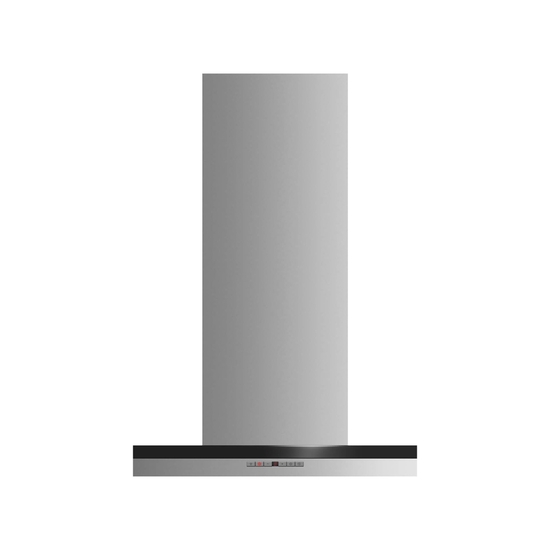

• 24 Inch Wall Mount Chimney Range Hood
  A sleek and modern addition to your kitchen with a stylish chimney design.

• Soft-Touch Controls
  Easy-to-use, intuitive controls for adjusting fan speeds, lights, and settings.

• 4 Fan Speeds
  Choose from 4 fan speeds to efficiently clear smoke, steam, and odors.

• 600 CFM
  A powerful 600 CFM motor that provides excellent airflow for quick ventilation.

• LED Lights
  Energy-efficient LED lights that illuminate your cooking area for clear visibility.

• Dishwasher Safe Filters
  Durable, easy-to-clean aluminum mesh filters that can be safely washed in the dishwasher.

• Timer Function
  Set the timer to automatically shut off the range hood after a set period, ensuring convenience and energy savings.

Features

• Easy Cleaning: The black glass and stainless steel finish is easily wiped clean. Multi-layered filters trap grease effectively. Designed for simple removal, the filter is easy to clean and dishwasher safe.
• Powerful yet Effective: With its 600CFM airflow, this range hood keeps the noise down to 48DBA on its usual operating speed while efficiently removing unwanted steam, smoke and any lingering odors.
• Designed to Match: Featuring a slim, contemporary design, the Designer Chimney Range Hood is timeless and seamlessly aligns with the Fisher & Paykel family of appliances.
• Bright LED Lighting: This range hood's LED lights provide bright, warm, energy efficient lighting ensuring the entire cooktop surface is illuminated.
• Ventilation Options: Depending on your preferences, this range hood can be recirculated internally or ducted externally. Visit fisherpaykel.com for the correct recirculation kit.
