Specifications

• General
  • Product group: Dishwasher
  • SKU: SHV53CM3N
  • Internal article number: SHV53CM3N
  • EAN code: 4242005297146
  • Construction type: Built-in
  • Column installation: Yes
  • Type of control: Electronic
  • Type of control: touch buttons
  • ChildLock: No
  • Watts (W): 1440
  • Current (A): 12
  • Volts (V): 120
  • Frequency (Hz): 60
  • Power cord length (cm): 170.0
  • Power Cord Length: 67''
  • Adjustable plinth: No
  • Height of removable worktop (mm): 0
  • Depth with open door 90 degree (mm): 1231
  • Energy Efficiency Class: Tier 1
  • Height of the packed product (mm): 908
  • Total annual energy consumption (kWh): 269
  • Width of the packed product (mm): 660
  • Depth of the packed product (mm): 745
  • Minimum height for installation (mm): 860
  • Installation type: Full-integrated
  • Maximum width for installation (mm): 618
  • Net weight (kg): 39.6
  • Five-level wash: Yes
  • Gross weight (kg): 45.8
  • Reference programme: Eco
  • Home Connect Connectivity: Wi-Fi
  • Length outlet hose : 78 3/4''
  • Enter the minimum temperature for wash (°C): 45
  • Enter the maximum temperature for wash (°C): 71
  • Removable work top: No
  • Number of wash cycles: 3
  • Start delay options: Continuous
  • Stop delay or a start delay option: Start
  • Start delay time max (h): 24
  • Status indicator: End of program audible, Time remaining indic. internal
  • Third Rack: 3rd Rack 1.0
  • Brand: Bosch
  • Accessories Parts: no
  • Door decor panel: Not possible
  • Plug type: Nema5-15P
  • Length outlet hose (cm): 200
  • Maximum adjustability feet (mm): 30
  • Number of different wash temperatures: 6
  • Water softener: No
  • Maximum temperature for water intake (°C): 60
  • Drying system: Condensation Dry
  • Automatic programmes: Yes
  • Interior light: No
  • Software update: Yes
  • Water Usage per Cycle: 3.5
  • Tub material: Stainless steel
  • Hidden heating element: Yes
  • Maximum height for installation (mm): 890
  • Minimum width for installation (mm): 610
  • Energy Star® qualified: No
  • Home Connect: Remote Monitoring and Control
  • Number of place settings: 16
  • Silence level (dBA): 46
  • End of cycle sound: End of program audible
  • Rinse aid light indicator: Yes
  • List of programmes: 1 Hour, Auto, Favorite, Intensive, Normal
  • Cycle Options: Extra Dry, HygienePlus, Remote Start
  • Safety device: Single Water Protection 24h
  • Depth for installation (mm): 610
  • Salt light indicator: Yes
  • Number of options: 5
  • Required cutout size (HxWxD) : 33 7/8'' x 24'' x 24''
  • Digital countdown indicator: Yes
  • Single basket washing: No possibility
  • Adjustable upper rack: Rackmatic 3-stage
  • UPC code: 825225965312
  • Basket with handle: Top basket
  • Total annual water consumption : 753
  • Net weight : 87.000
  • Optional accessories: SGZ1010UC, SMZ1008UC, SMZ4000UC, SMZ5000, SMZ5002UC

Description

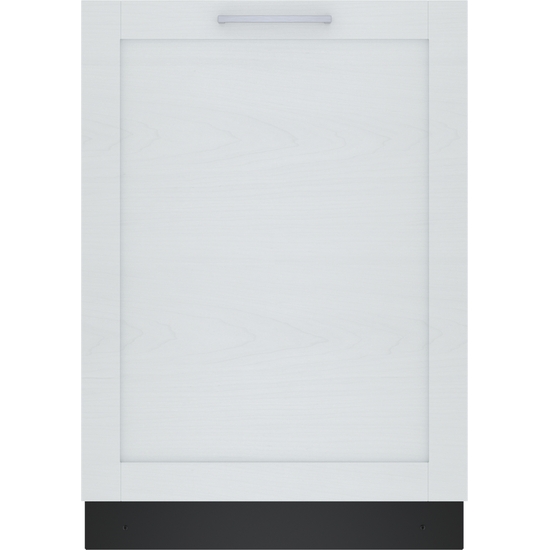

24-Inch Fully Integrated Built-In Panel Ready Smart Dishwasher – Bosch SHV53CM3N

Blend powerful performance with a seamless custom look. The Bosch SHV53CM3N 24-inch fully integrated, panel-ready dishwasher offers advanced cleaning technology, quiet operation, and flexible loading options—all designed to fit your kitchen and lifestyle.

Key Features:

• Panel-Ready Design:
  Fully integrated and customizable with your own cabinet panel and handle for a flush, seamless look.

• 16 Place Setting Capacity:
  Accommodates large loads, perfect for families or dinner parties.

• Ultra-Quiet Operation (46 dBA):
  Operates quietly in the background, ideal for open-concept living spaces.

• Standard 3rd Rack:
  Offers extra loading capacity for utensils, flatware, and small items.

• Adjustable Upper Rack:
  Easily moves up or down to fit taller items like wine glasses or pots.

• PrecisionWash® System:
  Intelligent sensors and precision spray arms deliver powerful, targeted cleaning for sparkling results.

• PureDry® Technology:
  Efficient, energy-saving drying without the need for a heating element.

• 24/7 AquaStop® Leak Protection:
  Advanced leak prevention system automatically shuts off water to protect your kitchen.

• Home Connect® App Compatibility:
  Control and monitor your dishwasher remotely using your smartphone or tablet.

• Recessed Handle Design:
  Clean, modern look that blends with your custom cabinetry.

Features

• EasyGlide™ Racks: provide a smooth glide on all three racks.
• Home Connect®: access additional wash cycles to choose the right one for your needs with Smart Cycle.
• RackMatic®: adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.
• 10 years warranty: our promise against rust-through.
• Remarkably Quiet Operation at 46 dBA: creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*
