Specifications

• ACCESSORIES
  • Optional Accessories : WB48X21543 Roller Rack
  • LP Conversion Kit : Included
• APPEARANCE
  • Color Appearance : Stainless Steel/Gray
  • Cooktop Burner Grate Color : Matte Black
  • Oven Door Features : Big View Oven Window
  • Control Knobs : Dark Gray
  • Handle : Designer Style
• CAPACITY
  • Total Capacity (cubic feet) : 5 cu ft
• FEATURES
  • Cooktop Surface : Edge-to-Edge, Gray, One-Piece Upswept, Porcelain-Enamel
  • Ignition System : Electronic
  • Burner - Right Rear : 12,000 BTU
  • Oven Control Features : Audible Preheat Signal, Auto Self Clean, Control Lock Capability, Delay Bake Option
  • Oven Rack Features : 2 Flat Nickel Racks
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Product Type : Free-Standing Single Oven
  • Cooktop Type : Continuous Grates
  • Interior Oven Light : 1 Incandescent
  • Oven Cleaning Type : Self-Clean
  • Cooktop Burner Grate Material : Heavy Cast Iron
  • Control Type : Electronic Touch
  • Burner - Left Front : 15,000 BTU
  • Drawer Type : Storage
  • Sabbath Mode : Yes
  • Cooking Technology : Traditional
  • Configuration : Range with Storage Drawer
  • Cooktop Burner Grate Features : Continuous Grates
  • OU Certified : No
  • Burner - Right Front : 9,500 BTU
  • Oven Rack Positions (Single or Upper/Lower) : 6
  • Fuel Type : Natural Gas (factory set)
  • Control Location : Front
  • Cooktop Burner Type : Sealed
• FILTER
  • App Filter - Product Type : Ranges Free-Standing Single Oven
  • App Filter - Fuel Type : Gas
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Drawer Type : Storage
  • App Filter - Cleaning Type : Self-Clean
  • App Filter - Cooking Technology : Traditional
  • App Filter - Convection : No
  • App Filter - Voltage : 120V
  • App Filter - Cooktop Type : Continuous Grates
• POWER / RATINGS
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 12.0; (1) 9.5; (1) 15.0; (1) 5.0
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 12.0 Broiler
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 16.0 Bake / 13.5 Broiler
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 19 x 19
  • Net Weight : 190 lb
  • Height to Cooking Surface (in.) : 36 - 36 1/2
  • Overall Width : 30 in
  • Depth Without Handle : 26.25 in
  • Cabinet Width : 30 in
  • Overall Height : 47.25 in
  • Overall Depth : 28.75 in
  • Depth with Door Open : 46.25 in
  • Approximate Shipping Weight : 210 lb

Description

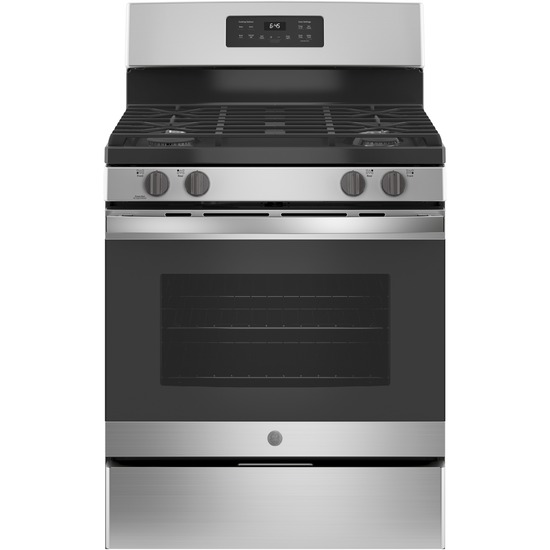

The 30'' Free-Standing Gas Range offers a practical and versatile cooking solution for any kitchen.

• Spacious oven and multiple burners provide ample cooking options.
• Freestanding design ensures easy installation and a seamless fit into your kitchen layout.
• Powerful burners offer consistent heat for a variety of cooking tasks.
• Sleek, modern design enhances the aesthetic of any kitchen.
• Ideal for everyday cooking needs, combining functionality with style.

This gas range delivers both performance and elegance, making it a great addition to any home.

Features

• Two-piece continuous edge-to-edge cooktop : A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
• 15,000 BTU Power Boil Burner : Delivers high heat for fast boiling
• Precise Simmer burner : Delicate foods don’t burn with low, even heat
• Self-clean oven : Cleans the oven cavity without the need for scrubbing
• Heavy duty, dishwasher-safe grates : Easily and safely clean grates in the dishwasher
• 5.0 cu. ft. oven capacity : Cook more dishes at once
• Sealed cooktop burners : Contains spills and make cleaning quick and easy
• Deep-recessed cooktop : Contains spills for quick and easy cleaning
• Spend Less Time Cleaning Up : Sealed cooktop burners contain spills and make cleaning quick and easy
